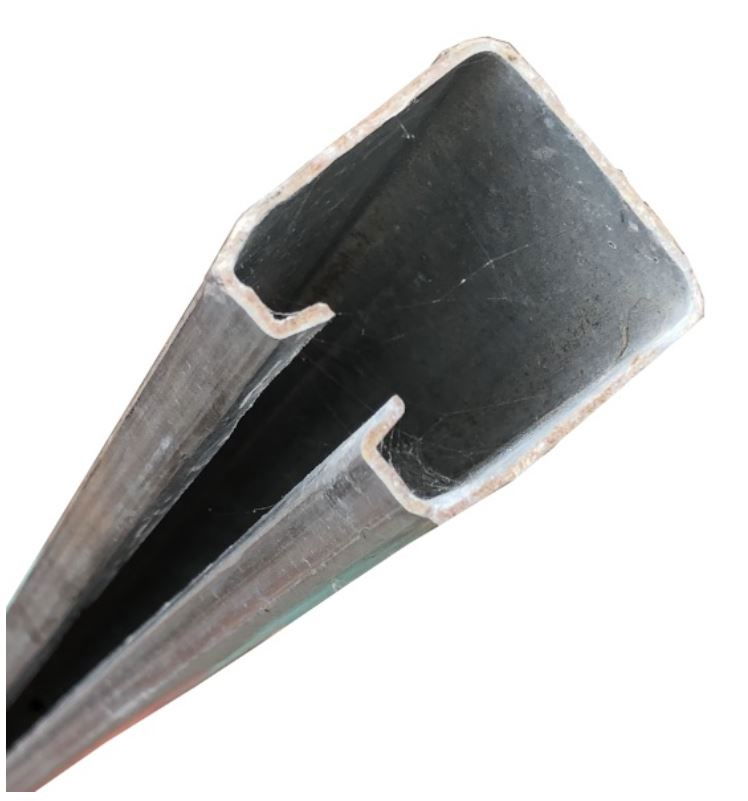

King Track, Size 0, 2000mm Length

Stock Code: KT020

OEM Part No: Size 0 (2 Mtr)

£88.80
Please allow 10-15 working days

Selecting Track Size This is determined by the weight and / or height of the door and the following guidelines should be observed. Assessing the weight of a door Timber Typical softwood doors of framed, ledged and braced construction, filled with 16mm tongued, grooved and vent-jointed match board weigh approximately. 50mm nominal thickness = 22 Kg/sqm 64mm nominal thickness = 25 Kg/sqm 76mm nominal thickness = 29 Kg/sqm

Metal Due to large variety, weight should be determined by exact calculation. Assessing the size of a door Jambs should be overlapped by 50mm to 76mm Lintels should be overlapped by 25mm to 40mm Ground Clearance should be 10mm Passing doors should overlap by 64mm Track Capacity = Per leaf 115Kg Recommended max door height= 2700
