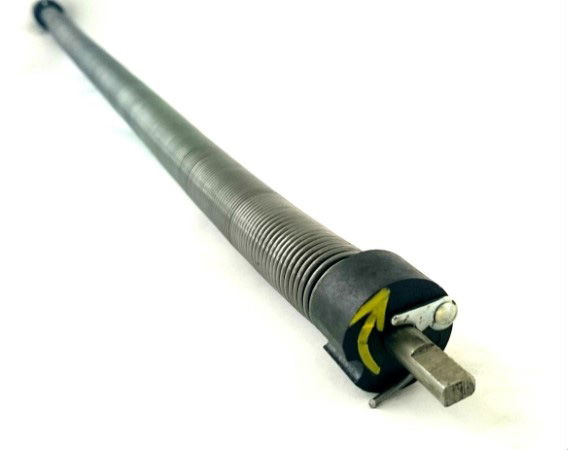

Hopkins 1.25" Spring Assembly
15g spring - 36" long
For use in medium duty blind applications: X-Lite, blackout fabrics, etc.
This product fits AT12S4" 1.25" grooved tube available in 4 m lengths.
For idle end use HOP1082C12 1.25" Compression Dummy Spindle Suitable brackets are available. To suit this spring assembly HOP1030T 5" 'T' Strap Bracket
Maximum Turns for Spring: 53
Maximum Torque at Turns: 1.70Nm
Weight Lifted: 3.70Kg
