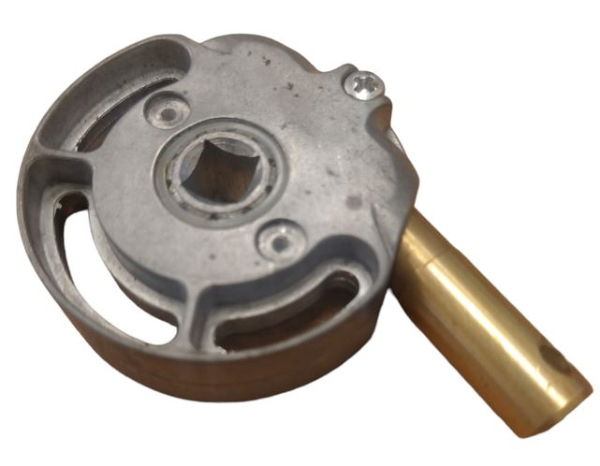

Worm gear 2.8:1
Application: Screens, Volants
Maximum output: 2Nm, Reduction ratio: 2.8:1, Efficiency: 0.38
6mm square input 7mm square output
Characteristics
Small installation dimensions (only 15 mm wide), ideal for use in tight spaces
Without end stop
Continuous interior profile at drive and output
Note
Also available with oval eyelet and eyelet prolongations. Further items on request.
Alternatively available with pre-mounted universal joint
Available in other models & variants - see Downloads
