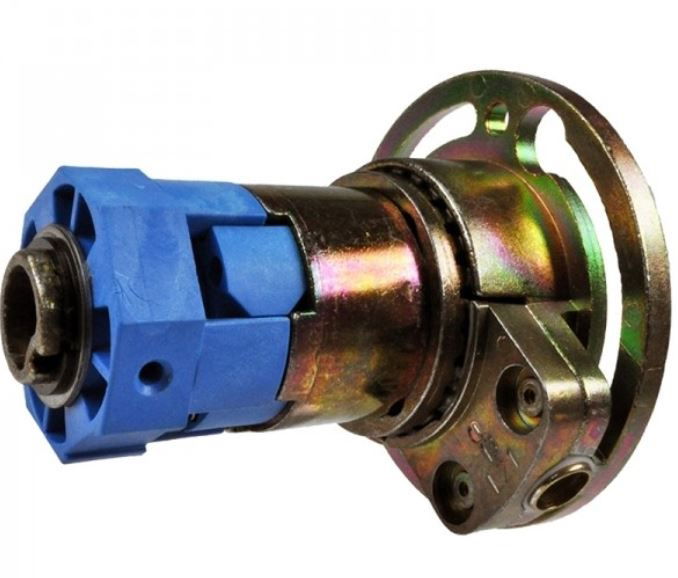

Reversible bevel gear 3:1
Maximum output: 9Nm, Reduction ratio: 3:1, Efficiency: 0.61.
6mm square input 36.7mm rod output
Features
Easy operation with small reduction ratio
Left-hand and right-hand design for the same direction of rotation when installed on the left or right The free-wheel prevents the shutter curtain from being rolled up incorrectly
Tested according to DIN EN 14201
Delivery state: rotation direction right
