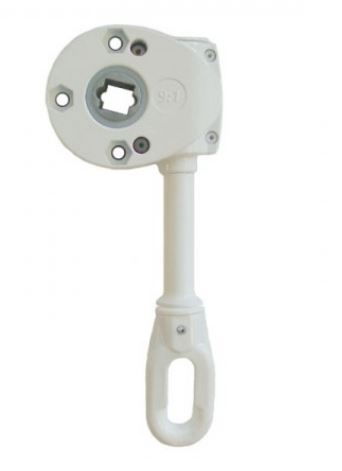

Worm gear 9:1, Eye in, 13mm square out
Abstand 98.5mm, Eye 65mm extended shaft
Application: Folding-arm awnings, pivot-arm awnings and window awnings
Maximum output: 16Nm, Reduction ratio: 9:1, Efficiency: 0.34
Eye (RAL9016) input 13mm Square output
Characteristics
Powder coated body and Plastic coated eye.
Available with/without casing collar
Without end stop
Note
Colours and drive shafts on request
For other variants please see Downloads
