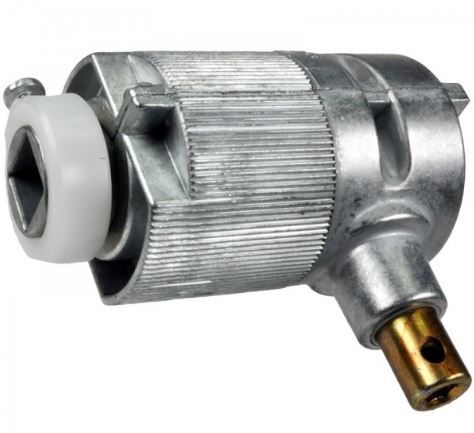

Bevel gear 3:1
6mm hex input, Ø 11.9mm trunnion, 12mm square output
Application: Venetian blinds with 50 mm head rail
Maximum output 9Nm, Reduction ratio 3:1, Efficiency 0.76. Installation side - right
Features
Our most efficient gear in the Venetian blind range
Diecast zinc housing „ Continuous interior profile at output shaft, enabling central installation if desired Left or right gear models with same direction of rotation for installation on left or right
Suitable gear holders for head rails of various sizes, see gear holder 432F...
Without end stop
For other models & variants please see Downloads
