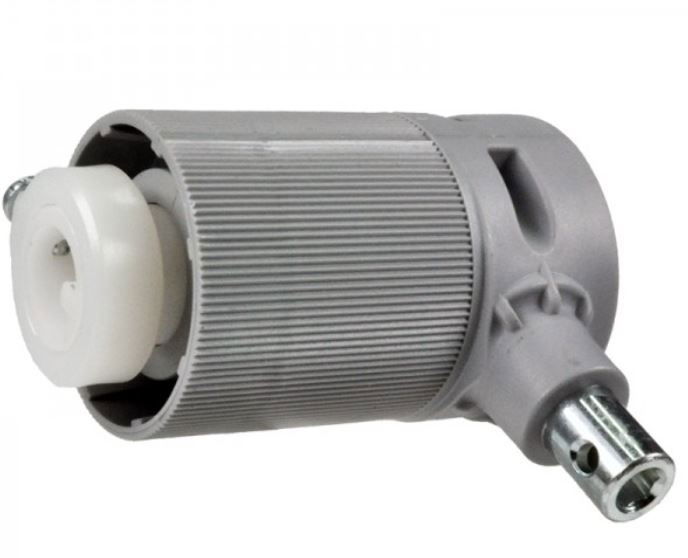

Bevel gear 2:1 with 11.9mm trunnion
6mm hex in, trunnion Ø 11.9mm, 14mm out
Application: Venetian blinds with 50 mm head rail
Maximum output: 3Nm, Reduction ratio: 2:1, Efficiency: 0.57. Installation side - right
Features
Housing made out of high-strength plastic
Continuous interior profile at output shaft, enabling central installation if desired
Left or right gear models with same direction of rotation for installation on left or right
Without end stop
Suitable gear holders for head rails of various sizes, see gear holder 432F...
For other models & variants please see Downloads
