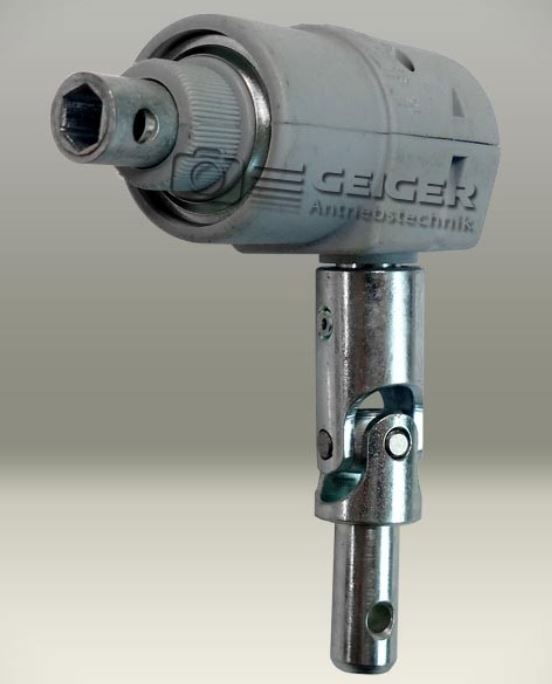

Bevel gear 1.2:1
9.9mm trun in with universal joint, 6mm hex out
Right install, plastic housing
Application: Venetian blinds with 40 mm head rail. Installation side - right
Maximum output: 2Nm, Reduction ratio: 1.2:1, Efficiency 0.72.
Features
Housing made out of high-strength plastic
No continuous profile
Insertable interior profile at input shaft, enabling use of just one gear model for same direction of rotation whether installed on left or right
Alternatively available with pre-mounted universal joint
Without end stop „ Suitable gear holders for head rails of various sizes, see gear holder 431F...
For other models & variants see Downloads
