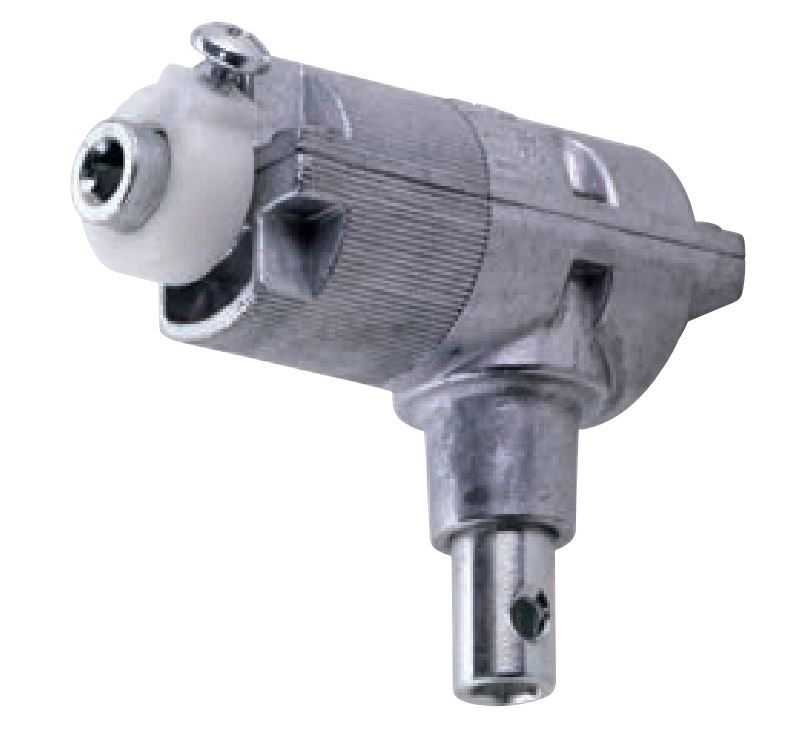

Bevel gear 1.2:1
6mm hex in, 5mm hex out.
Right install
Application: Venetian blinds with 40 mm head rail. Installation side - right
Maximum output: 2Nm, Reduction ratio: 1.2:1, Efficiency 0.55
Features
Diecast zinc housing
Continuous interior profile at output shaft, enabling central installation if desired
Left or right gear models with same direction of rotation for installation on left or right
Alternatively available with pre-mounted universal joint
Without end stop
Suitable gear holders for head rails of various sizes, see gear holder 427F...
For other models & variants see Downloads
