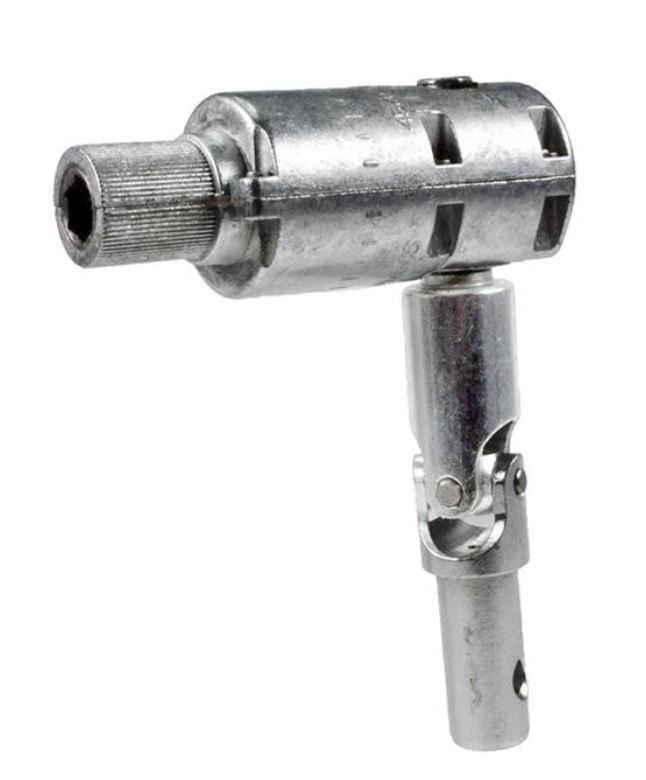

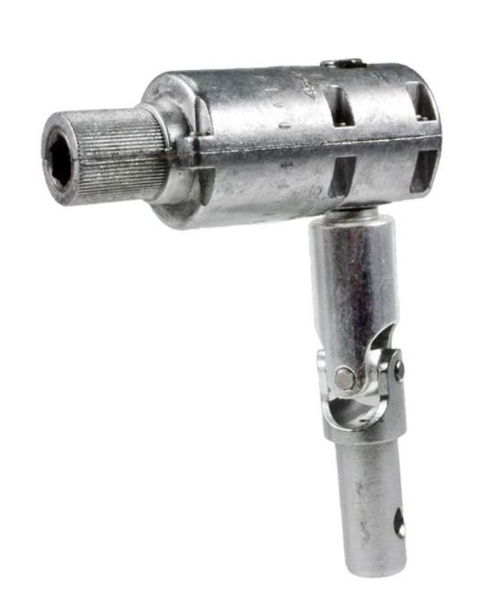

Bevel gear 1:1
9.9mm trunnion universal joint in, 6mm hex out
Application: Venetian blinds with 25 mm head rail, right side installation
Without end stop (elevator limitation)
Plug-through inner profile on the output (for centre installation)
Connection pin with universal joint on the drive
Die-cast zinc housing
Matching gear holder G429F100
Available in other models & variants - see Downloads
