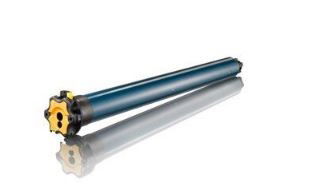

Somfy Tubular motor 230 V/50 Hz, suitable for rolling shutters, screens and sun protections.
LT 50 fits in tube with a minimum inner diameter of 47 mm. For LT 60 this is 60 mm.
Capacity of final adjustment at LT 50: 46 revolutions With LT 60: 35 revolutions.
Supplied as standard with a white 4-core (VVF) cable, length 3 m, unless stated otherwise.
Can be used with all Somfy controls.
Characteristics
Applications: Awning, Exterior Vertical Screen, Pergola, Rolling shutter
Power supply: AC - RGE 1 - 230V/50HZ
Speed: 17 rpm
Approval: NF
Insulation class: I
Protection Index: IP 44
Diameter: 50 mm
Minimum internal diameter: 47 mm
Technology compatibilities: Wired
Range: LT
Torque: 20 Nm
Product benefits:
Removable cable: makes installation easier.
Quick setting: the end point can be set quickly using the push button limit switches.
Type: Motors
Packaging
Unwrapped length: 555 mm
