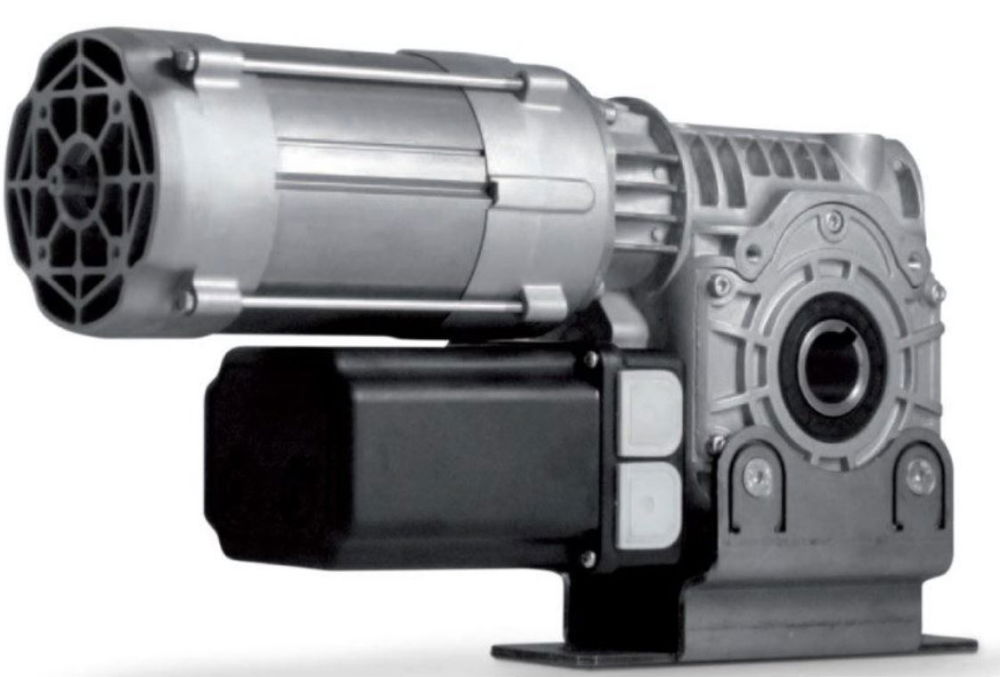

Gaposa Sidone Motor,250Nm,12 Rpm,3 Phase,Hand Crank M Limits

Stock Code: GLP25012TMM

OEM Part No: LP25012TMM

£624.70
Please allow 10-15 working days

250Nm, 12rpm 3-phase with hand crank & mechanical limits The self-braking worm gear makes the Sidone irreversible. No need for an electric brake

Duty rating There is a relation between the weight of the door and the number of movements per hour so the motor duty rating varies according to the door weight.

Overload safety factor Motor overload safety factor = 4 x the nominal motor amperage because the starting current of the Sidone can reach these levels for short periods.

Output speed The maximum admissible speed depends on the construction and type of door. The admissible closing speed shall be tuned so to let the operating forces comply with the EN 12453.

Manual operation The manual override devices (handle or hand chain override) when power cuts-off, are based on a max strength of the end user of almost 40kg. In big or extremely heavy shutters the manual override is only intended in down direction.
