10Nm, 14rpm (5rpm in quiet mode) wired tubular motor
Tubular drives for roller shutters with quiet mode
Mechatronic end position detection with soft cut-out, intelligent force measurement, upward/downward blind protection and free travel, automatic release for torque cut-off at end position, end positions adjustable with assembly cable, min. shaft size Ø = 50 mm, noiseless soft brake up to 25 Nm. Parallel connection with up to three drives possible.

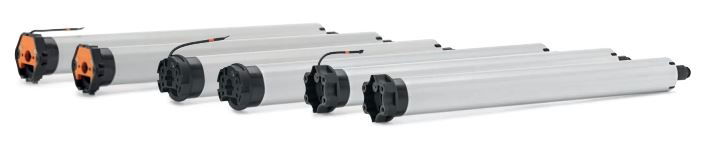

RolMotion drives from Elero ensure slower and quieter movement of motorised roller shutters thanks to their optimised running behaviour. In addition to proven technologies, such as the soft brake and obstacle and blockage detection, quiet mode offers you even greater living comfort at minimum noise pollution. The RolMotion M-868 and M tubular drives are available both with and without an integrated radio system. They have a diameter of 45 mm and a minimum length of 478 mm. Configurations of 6 to 25 Nm and, depending on the version, 5 to 14 rpm are available.
