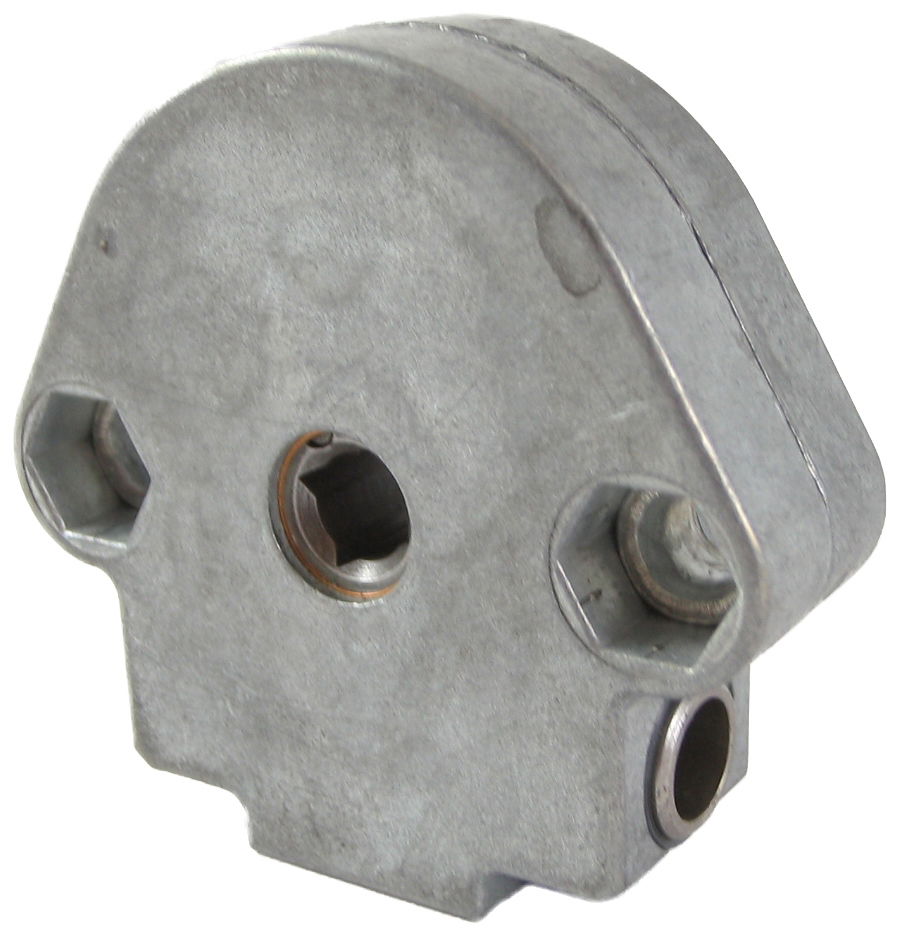

Worm gear 4:1, for Rolling Shutters
Maximum output: 6.5Nm, Reduction ratio: 4:1, Efficiency: 0.39
8mm square input, 7mm square output
Features
The small power package: high performance with minimal gear dimensions
With end stop after max. 19 rotations (available also without end stop)
Continuous interior profile at drive and output
Matching free-wheel and cap G414F906 & Tube Drive G414F900, G414F902, G414F909
For alternative variants please see Downloads
