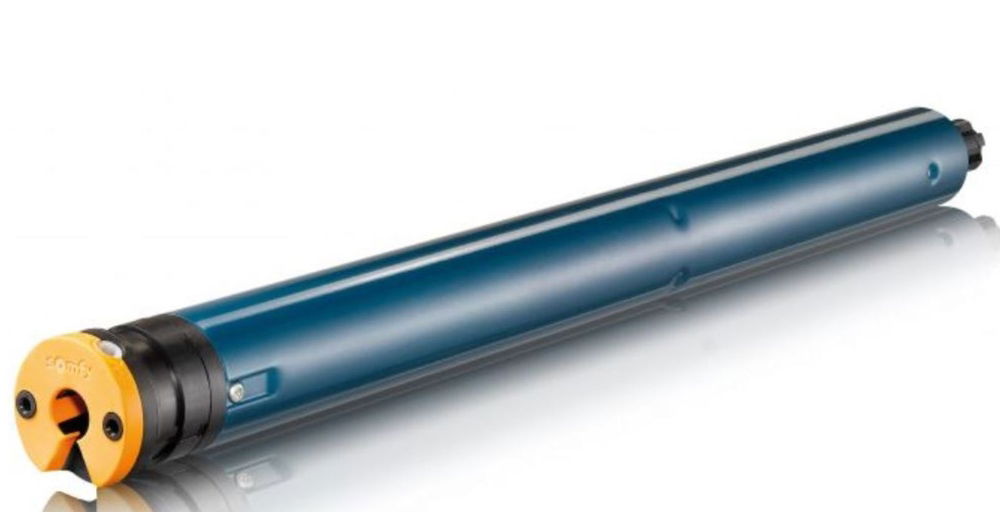

9 Nm 16rpm wired motor, perfect for internal blinds
Tubular motor 230 V/50 Hz, suitable for rolling shutters, screens and sun protections.
Fits into a tube of minimum internal diameter 37 mm.
Double insulated according to class II and therefore not equipped with an earth wire.
Limit switch capacity: 40 revolutions, except for the LS40 Short 4/16: 20 revolutions.
Supplied as standard with a fixe white 3-core (VVF) cable, length 2.5 m.
Can be used with Somfy wired controllers.
Axial and radial cable outputs.
Not suitable for continuous use.
Silent brake for silent stopping of the application.
