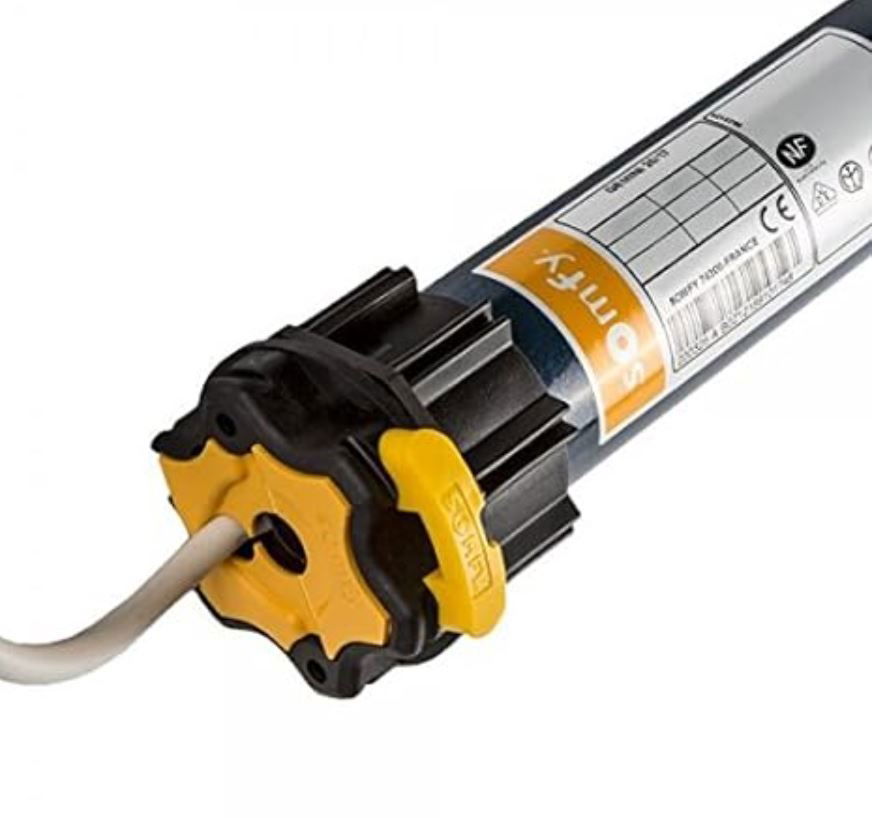

Tubular motor 230 V/50 Hz, with built-in high-frequency receiver.
Reception range: 20 metres through 2 concrete walls, can be doubled by means of a repeater.
Easy settings by remote using remote control transmitter.
Automatic intermediate position pre-programmed as standard to the daylight position.
An Oximo io tubular motor can be controlled remote with at most 9 x 1-way commands and infinitely many 2-way commands. These are easy to add and remove.
Cannot be used with relay box, standard switches and standard controls.
Fits into a tube of minimum internal diameter 47 mm.
Limit switch capacity: operating time restricted to 3 min.
Supplied as standard with a white 3-core (VVF) cable, length 5 m. Axial and radial cable outputs.
Not suitable for continuous use.
The frost protection works only with closed slats. The motor won’t detect the frozen shutter when it happens with open slats (ventilation).
