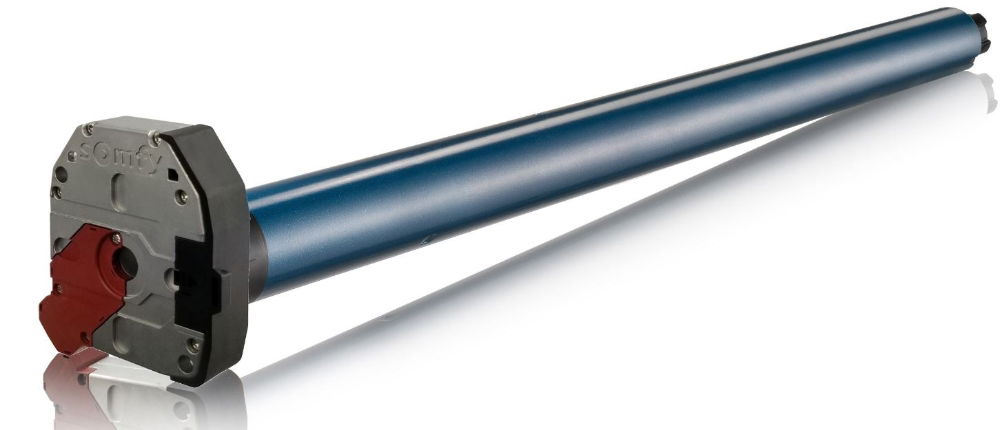

Tubular motor 230 V/50 Hz, with built-in high-frequency receiver.
Reception range: 20 metres through 2 concrete walls.
2 Adjustable automatic intermediate positions possible.
1 LT 50 CSI RTS tubular motor can be operated wirelessly with up to 12 wireless control points and up to 3 RTS sensors.
LT 50 CSI RTS series fits into a tube with a minimum internal diameter of 47 mm.
Limit switch capacity: 34 revolutions (± 8°).
Supplied as standard with a white 3-core (VVF) cable, length 2.5 m.
Radial cable ports.
Accessories series 50 HiPro tubular motors.
Not suitable for continuous use.
Not suitable for garage roller shutters or the roller shutters of access doors.
Suitable for tube diameters 50mm-85mm
Max Turn Capacity = 34
2 programmable "my" positions
Memory capacity: 12 transmitters, plus 3 sensors
IP44 Rating
3 Core Cable
Length = 774mm + Override Head (24mm)
