New functions:
Automatic unstressing at both ends, increasing the service life of the shutter and preventing distortion of the shutter box.
Automatic clearing of the object after obstruction detection.
This version replaces the previous version.
CAUTION: Short motor with loose external Ilmo circuit board

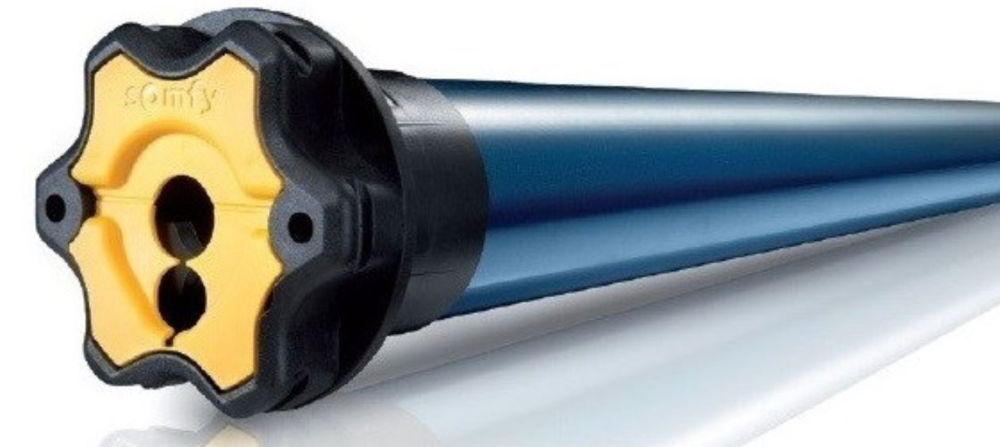

Tubular motor 230 V/50 Hz for motorising roller shutters starting from a width of 425 mm.
No adjustment required.
Cannot be used with spring blades. The motor always switches off on resistance.
Fits into a tube of minimum internal diameter 47 mm.
Runtime limited to 3 min.
Supplied as standard including Ilmo 2 WT circuit board module, white 4-core (VVF) cable (length 3 m) and with cable with motor connector.
Axial and radial cable outputs.
Not suitable for continuous use.
Intelligent obstacle detection in both up and down direction. Attention for unrolling the roller shutter blade in the roller shutter box.
Quick installation using the unique clip system.
