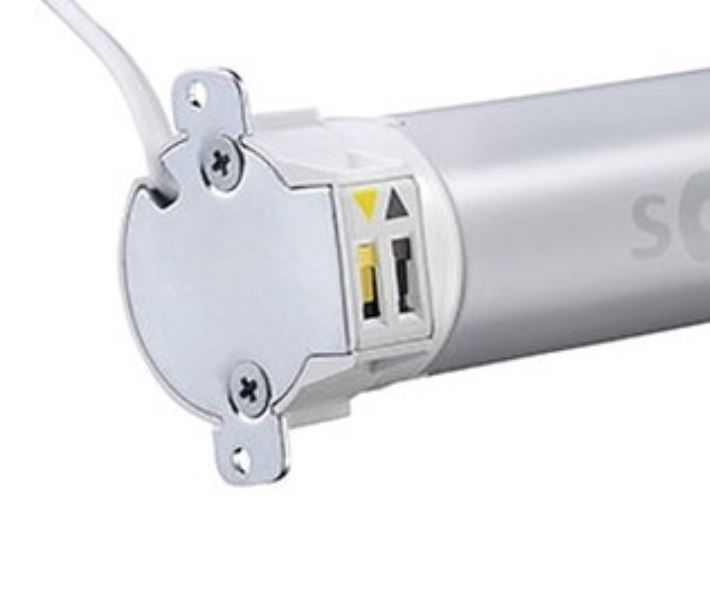

Wired 24V DC Tubular motor for Ø tubes from 28mm for small to mid-size roller blinds. Limit setting easy accessible on motor head, easy to use, reliable and with high accuracy. Wide range of accessories for easy motorisation. Approved for working conditions from -10ºC to +85ºC.
Maximum Voltage 27 V
Minimum voltage 20 V
Consumption during operation 7.68 W
Consumption in standby mode 0.1296 W
Rated current 0.32 A
Mechanical
Repeatabilty ± 5 °
Nominal Torque 0.8 Nm
Nominal Speed 30 rpm
Cable
Wire section AWG24 mm²
Wire Length 0.25 m
Dimension
Overall lenght (L1) 293 mm
Basic crown for tube diameter 28 mm
Length (L3) 293 mm
Diameter 25 mm
Weight 0.26 Kg
Other
Noise level (according to Somfy) 57 dBa
