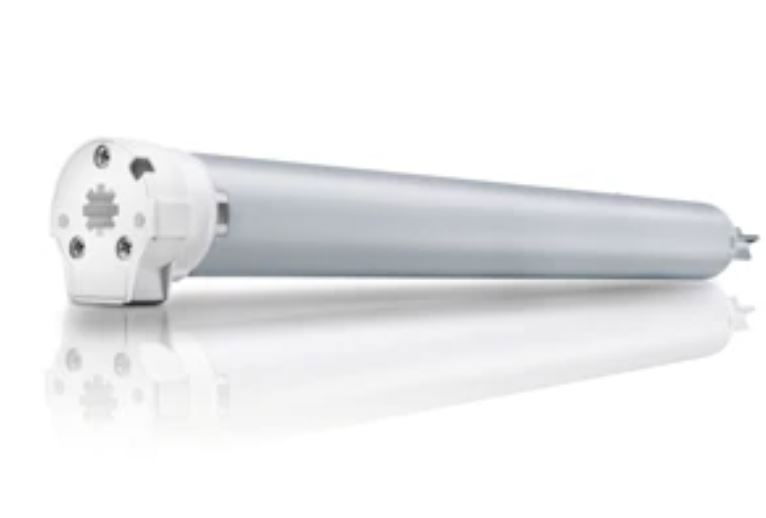

RollUp 28 Wired motor with Star Socket end plate


OEM Part No: 1002834


Wired 24V DC Tubular motor for Ø tubes from 28mm for small to mid-size roller blinds. Limit setting easy accessible on motor head, easy to use, reliable and with high accuracy. Wide range of accessories for easy motorisation. Approved for working conditions from -10ºC to +85ºC.

Maximum Voltage 27 V Minimum voltage 20 V Consumption during operation 7.68 W Consumption in standby mode 0.1296 W Rated current 0.32 A Mechanical Repeatabilty ± 5 ° Nominal Torque 0.8 Nm Nominal Speed 30 rpm Cable Wire section AWG24 mm² Wire Length 0.25 m Dimension Overall lenght (L1) 293 mm Basic crown for tube diameter 28 mm Length (L3) 293 mm Diameter 25 mm Weight 0.26 Kg Other Noise level = 57 dBA
