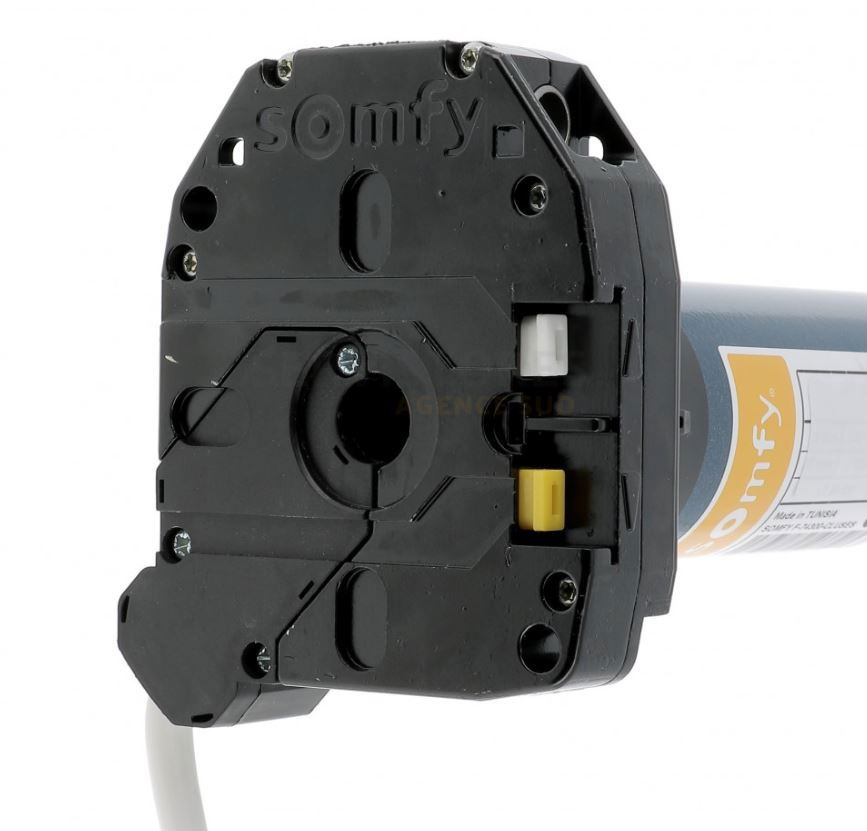

RDO50 CSI 20Nm 17Rpm (Replaces Meteor)

Stock Code: RDO50CSI20/17


Manual over-ride motor with rapid set limits for Roller Shutters Applications. 230V/50Hz motor. Integral manual over-ride system for use in the event of a power cut. Motor can be installed directly on the shutter end plate. Capacity of the limit switch unit for LT50/60: 34 revolutions. The limit setting buttons are situated parallel to the CSI axis. Access to the limit setting buttons is possible from both sides of the CSI casing, using an adjustment tool supplied with the motor. Supplied with white 4-core detachable supply cable 2.50 m long. 6 mm square or 7 mm hexagonal manual over-ride axis. Manual over-ride ratio for LT50 CSI: 27:1, LT60 CSI: 55:1

Applications: Garage door, Rolling shutter Range in open field: 0.05 m Power supply: AC - RGE 1 - 230V/50HZ Speed: 17 rpm Approval: NF Protection Index: IP 44 Diameter: 50 mm Minimum internal diameter: 50 mm Technology compatibilities: Wired Range: RDO Torque: 20 Nm
