Stock Code: SOPHOTO-MP180
OEM Part No: 1841216

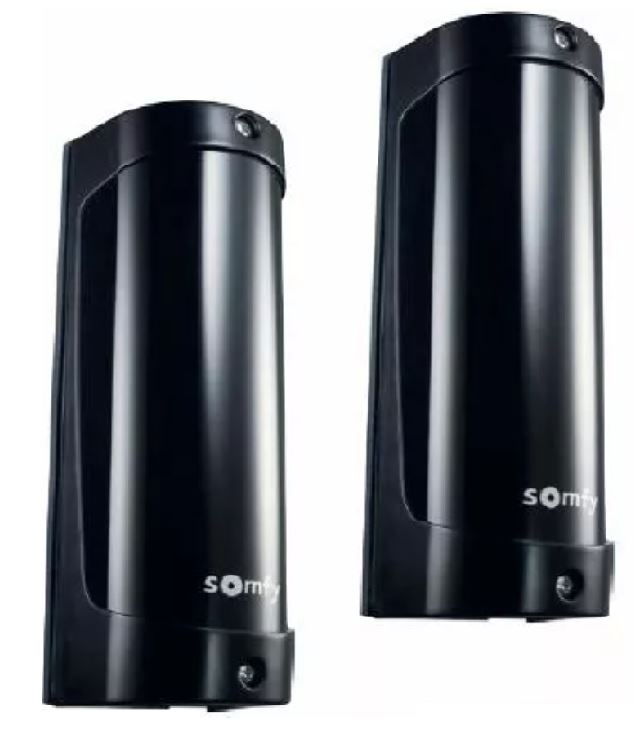

Product benefits: Device for obstacle detection during movement of the gate or garage door. Adjustable to 180o (+/- 90o) Easy adjustment with tools to align the cells Standard 4+2 wires NO contact and auto test function Range 10m (reduced in fog or rain) Contacts No dry contact Self test input Yes Power supply 24 Vac/dc Power consumption TX: 12mA RX: 10mA at rest/15mA max Contact Capacity 30 V 1 A Electrical Insulation Class 111 - very low safety voltage Size (H x l x h) 130 x 45 x 43mm Operating Temperature -20oC to +55oC Index of protection IP 45 Compatibility All (excepted Axovia 220B RTS and Elixo Optimo RTS)
