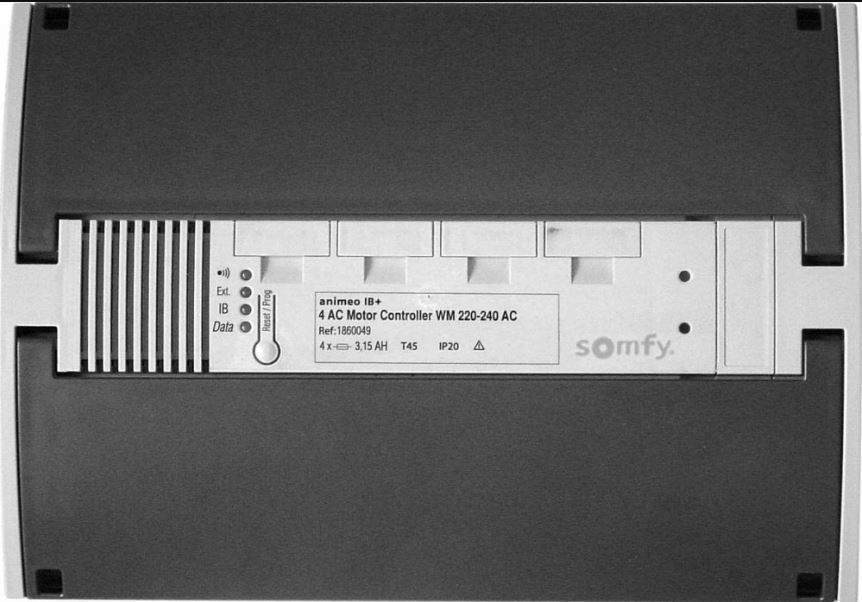

Somfy Animeo KNX 4AC motor controller
Motor controller for roller shutters, screens, exterior Venetian blinds and windows. To individually control four 230 V AC motors
The use of plug connectors enables time savings and less wiring errors.
Flexible installation options: on DIN rail or with screws.
Testing of running direction of the motors can be done with the motor controller itself before the ETS integration programming.
Via local standard switches users can control the solar shading to the desired position and overwrite automatic operation. Each motor output can be controlled individually using KNX or via individual switches.
The 8 inputs to connect local push-button switches can also be used to send orders via KNX to create - with ETS - individual groups of motors controlled by local switches. The inputs can also manage switching and dimming via the KNX bus.
By plugging the KNX/RTS receiver (SO-1860191) into the motor controller at any time, the RTS range of user interfaces
