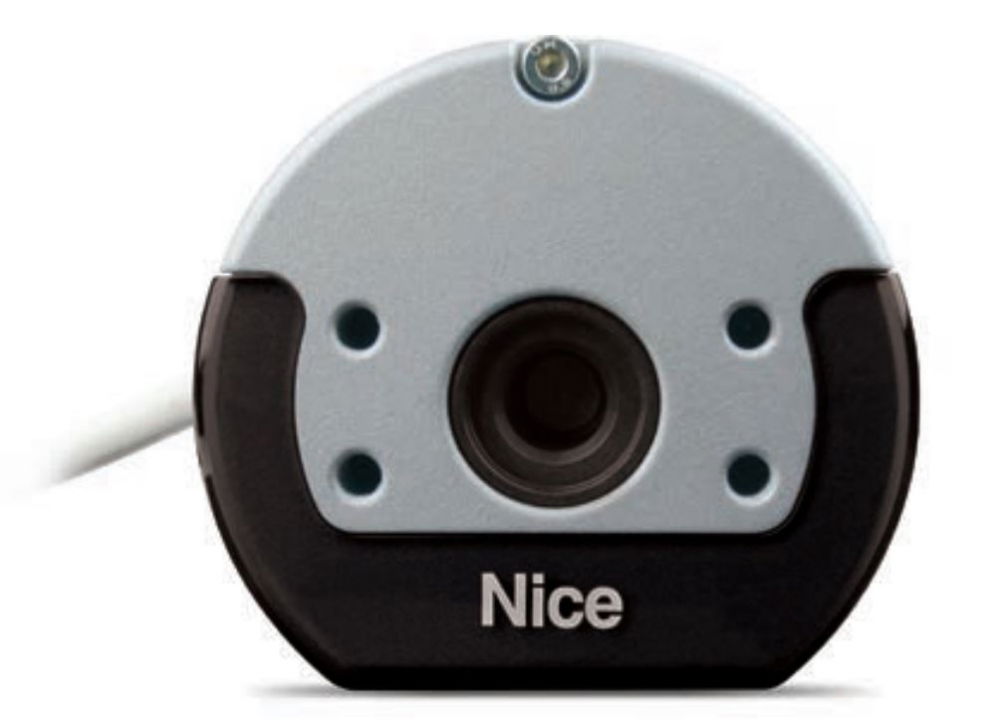

40Nm, 12rpm tubular motor
Tubular motor with mechanical limit switch and manual emergency override mechanism. Size M 45 mm Suitable for all needs: usable both for large-scale applications with the 50 Nm 12 rpm version and small structures with the 15 Nm 17 rpm version. Ideal for intensive use: the 12 Vdc Era MH DC version guarantees 6 minutes of continuous operation at the same speed during both up and down manoeuvres. The low voltage power means that alternative energy sources such as batteries and solar panels can be used. Intuitive adjustment of up and down limit positions, thanks to the mechanical limit switch. Easy to install, fixing directly on the head thanks to the M6 holes with 48 mm centre distance, no support required. Compact and robust Small size (head diameter 85 mm) for installation in small boxes. Motor head in 100% zinc alloy. Wired and/or radio connection to climatic sensors via external control units. Low consumption in stand-by.
