Gaposa Rapido 25mm shaft, digital limits

Stock Code: GLP60130VTME

OEM Part No: LP60130VTME

Please allow 10-15 working days

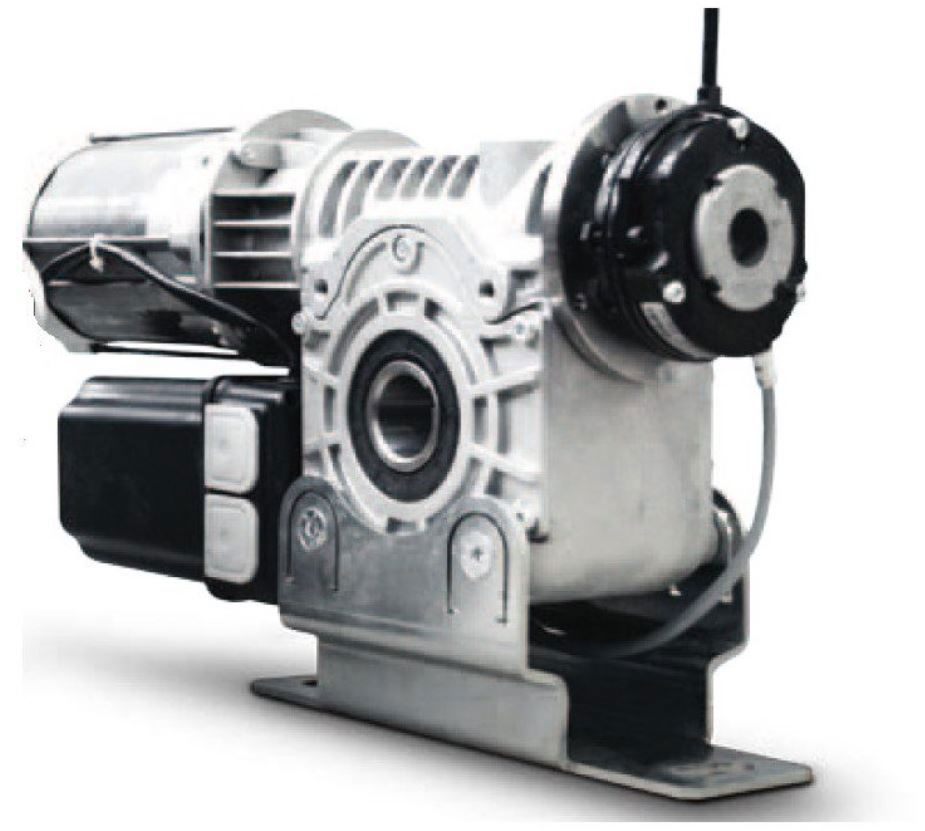

GLP60130VTME 60Nm, 130rpm Rapido with an electromagnetic brake and an integrated safety brake.

European directives RAPIDO is made in accordance with product standards EN 13241-1 Doors- and EN 12453 Safety for power operated doors.

Duty rating There is a relation between the weight of the door and the number of movements per hour so the motor duty rating varies according to the door weight.

Overload safety factor Motor overload safety factor = 4 x the nominal motor amperage because the starting current of the RAPIDO can reach these levels for short periods.

Output speed The maximum admissible speed depends on the construction and the door type. The admissible closing speed shall be tuned so to let the operating forces comply with the EN 12453.

Manual operation Rapido is supplied with hand crank for manual operation when power cuts off.
