30Nm, 14rpm tubular motor, wired
Tubular drives for roller shutters
Mechatronic end position detection with soft cut-out, intelligent force measurement, upward/downward blind protection and free travel, self-learning end positions with automatic release function, min. shaft size Ø = 50 mm, noiseless soft brake up to 20 Nm, bidirectional radio control at 868 MHz with automatic routing function and feedback (with radio drives). Parallel connection possible (with wired drives).

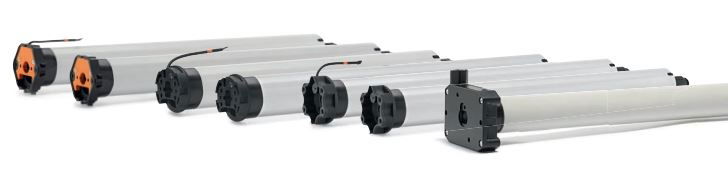

With a diameter of 45 mm and a minimum length of 403 mm (K version), the tubular drives of the RolTop M series are suitable for space-saving roller shutters, blinds and screens. The majority of drives are available with or without an integrated radio system. Drives from 2.5 to 50 Nm are available with 14 to 90 rpm, depending on the version.
