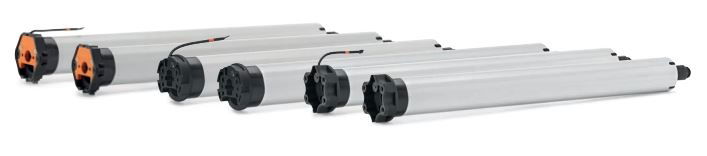

10Nm, 14rpm (5rpm in quiet mode) tubular motor with radio control
Radio tubular drives for roller shutters with quiet mode
Mechatronic end position detection with soft cut-out, intelligent force measurement, upward/downward blind protection and free travel, automatic release for torque cut-off at end position, end positions adjustable with radio transmission or assembly cable, min. shaft size Ø = 50 mm, noiseless soft brake up to 5 Nm, bidirectional radio control (868 MHz) with automatic routing function and feedback.
All Elero Revoline tubular motors (35mm, 45mm, 58mm Round Head) come with a 2m power cable.
This cable MUST be ordered separately:
E99004101 - white
E99005101 - black
If one of these codes is not included in the order, then no cable will be supplied.
Other cable lengths are available in white or black - please call for price & availability or search E99000 in the search box.
