Worm gear 6:1
Application: Pivot-arm awnings, marquisolettes, small folding-arm awnings
Maximum output: 8Nm, Reduction ratio: 6:1, Efficiency: 0.34
With Eyelet, With End Stop
Eyelet (RAL7035) input, 7mm square output.

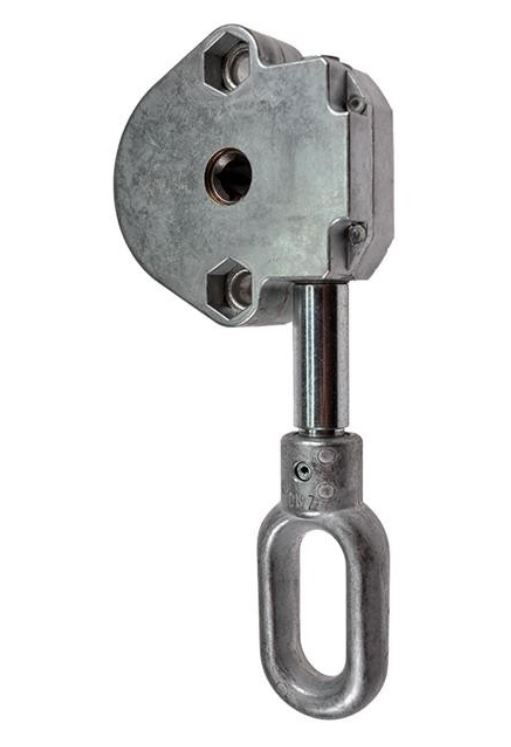

Image for illustrative purposes only. Actual gearbox comes with light grey round plastic eyelet.
Characteristics
The small power package: high performance with minimal gear dimensions
With end stop after max. 19 rotations (available also without end stop)
Continuous interior profile at drive and output
Extensions on request
Note
Colours and drive shafts on request
This GEIGER awning gear is available with oval zinc eyelets, oval or round plastic eyelets in different RAL colours
For other variants please see Downloads
