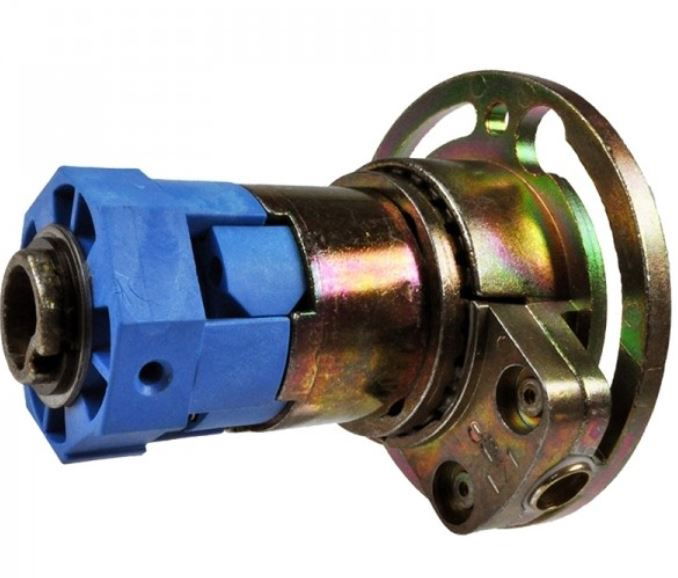

Reversible bevel gear 2:1
Maximum output: 8.5Nm, Reduction ratio: 2:1, Efficiency: 0.65
6mm Ssquare input 36.7mm rod output
Features
Easy operation with small reduction ratio
Left-hand and right-hand design for the same direction of rotation when installed on the left or right The free-wheel prevents the shutter curtain from being rolled up incorrectly
Tested according to DIN EN 14201
Delivery state: rotation direction right
