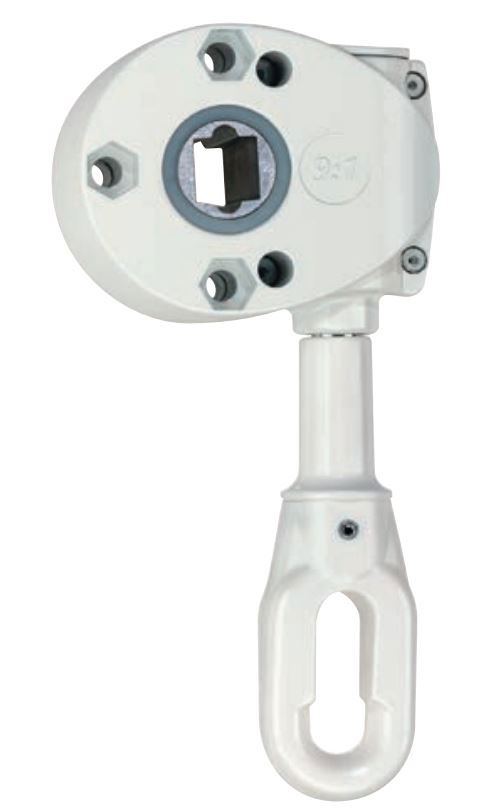

Worm gear 9:1
Application: Folding-arm awnings, pivot-arm awnings and window awnings
Maximum output: 16Nm, Reduction ratio: 9:1, Efficiency: 0.34
Eye (RAL9016) input 13mm Square output
Plastic eyelet oval extended (from the middle of the gearbox to the beginning of the eyelet 68.5 mm)
Characteristics
Powder coated body and Plastic coated eye.
Available with/without casing collar
Without end stop
Note
Colours and drive shafts on request
For other variants please see Downloads
