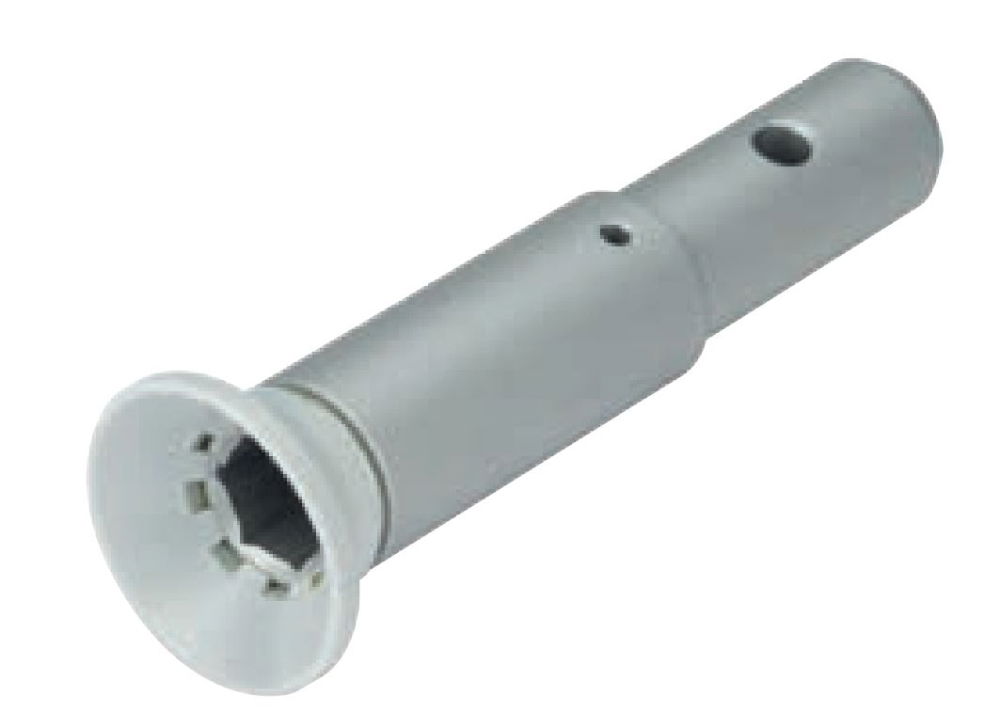

Funnel for Rods as part of the Detachable crank handle system
11.9mm trunnion input
Application: for hard-to-reach places for Venetian blinds and rolling shutters
Characteristics
Allows easy disassembly of the crank system after usage
Optimal in areas where a crank system is a disturbing feature
Prevents misuse of the crank system by unauthorized persons (schools, public buildings, etc.)
See G818F090 / G818F092 for locking tip
Note
For 45° and 90° spherical bearings
Consisting of funnel and trunnion
Funnel can also be permanently installed in gear unit
For product variants please see Downloads section of this product.
