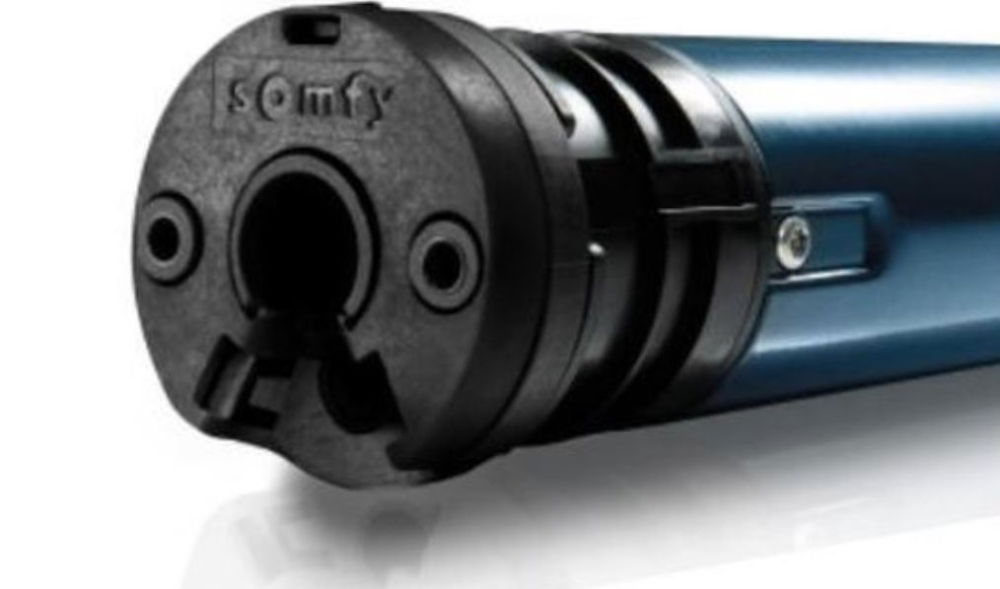

6Nm, 17rpm RTS motor with round head
Tubular motor 230 V/50 Hz, with built-in high-frequency receiver.
Reception range: 20 metres through 2 concrete walls.
Adjust easily by remote using remote control transmitter.
Adjustable automatic intermediate position is possible.
1 Altus RTS tubular motor can be operated wirelessly with up to 12 wireless controls and up to 3 RTS sensors.
Cannot be used with relay box, standard switches and standard controls.
Not suitable for continuous use.
Limit switch capacity: 250 revolutions (Altus 50 RTS) and 200 revolutions (Altus 60 RTS). Operating time restricted to 3 min.
The Altus 50 series fits in a tube with a minimum internal diameter of 47 mm, on the Altus 60, the diameter is 60 mm.
Supplied as standard with a white 3-core (RRF) cable, length 3 m. Axial and radial cable ports.
