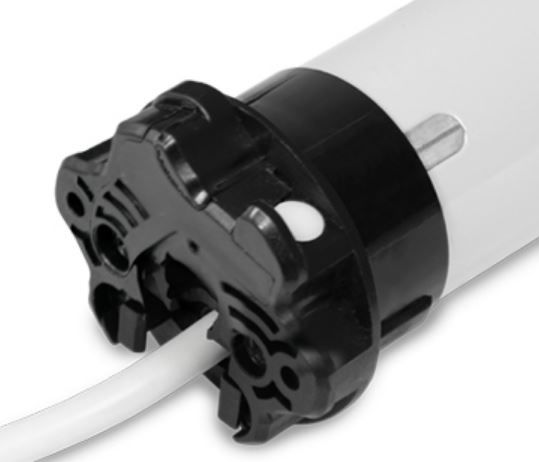

Tubular motors with obstacle detection and automatic limit setting for ZIP-screen
Electronic encoded with built-in radio receiver, 20Nm, 17rpm
AC Motor
Diameter Ø 45mm
Up and down directions syncronized while setting the limits
Noiseless soft brake
Easy limit setting via radio
868.30 MHz radio transmission
Wireless connection with climatic sensors
Plug-in cable
Downwards high sensitive obstacle detection
Reverse function when an obstacle is detected
Overload protection upwards and ice protection built-in technology
Automatic electronic limit setting
Motor reset and deactivation of the mode by using the normal switch
Built-in radio receiver
Integrated Antenna
Smooth stop against the upper limit
Power saving
Easy and safe wiring connection
SENSE ZIP motor requires installation of the cassette as upper torque stop of the bottom bar and specific adapters. The correct selection of the torque according to the shutter size and weight is essential for the motor overload protection.
