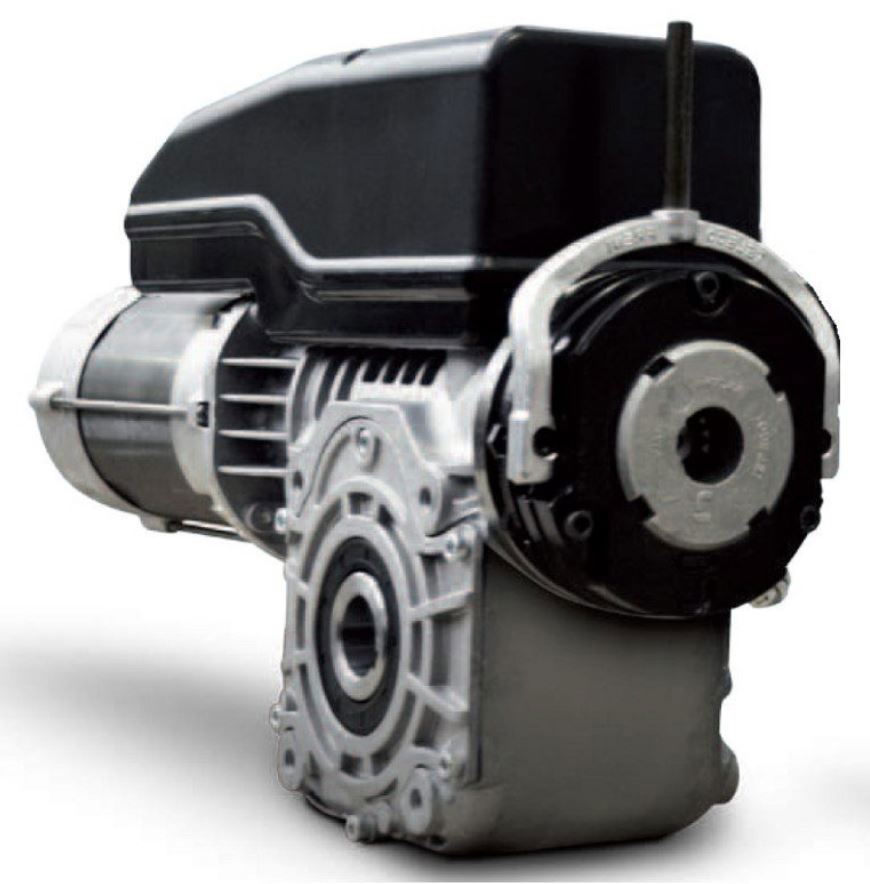

40Nm, 130rpm Rapido with 25mm shaft & mechanical limits
Rapido is a Three phase motor, ideal for the rapid doors' market.
All models are provided with an electromagnetic brake, which stops suddenly the inertia of the motor, and an integrated safety brake.
Mechanical limit switch: 2 Green cams for operating limits, 2 Red cams for safety limits, 2 Yellow cams for auxiliary controls.
OVERLOAD SAFETY FACTOR
Motor overload safety factor = 4 x the nominal motor amperage because the starting current of the Rapido can reach these levels for short periods.
MANUAL OPERATION
Rapido is supplied with hand crank for manual operation when power cuts off
