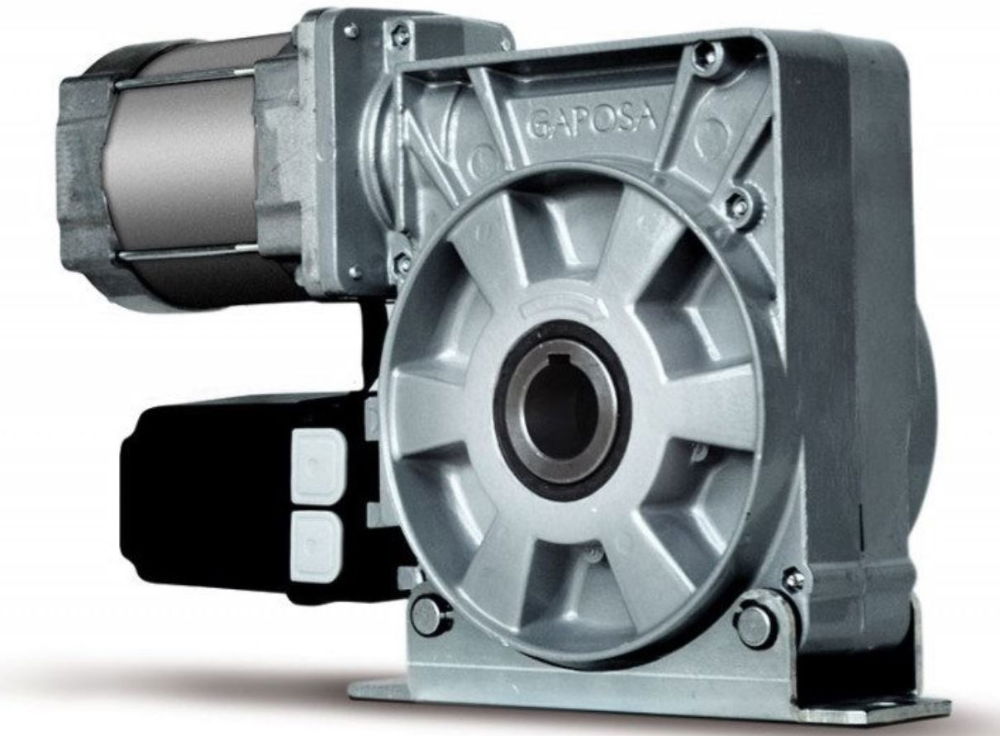

Gaposa Midi hand crank digital limits 650Nm, 12rpm

Stock Code: GLP65012TME

OEM Part No: LP65012TME

£1,303.80
Please allow 10-15 working days

650Nm, 12rpm hand crank with digital limits Sidone MIDI is a Three phase motor with integrated safety brake. The worm gear makes the motor irreversible. The typical application are: heavy rolling shutters, rolling grilles, vertical lift doors and sectional doors without spring compensation. Digital limits with Absolute encoder. No readjustment after power failure (necessary if a control unit with inverter is used). OVERLOAD SAFETY FACTOR Motor overload safety factor = 4 x the nominal motor amperage because the starting current of the Sidone can reach these levels for short periods. MANUAL OPERATION The manual override devices (hand crank or hand chain override) when power cuts-off, are based on a max strength of the end user of almost 40kg. In big or extremely heavy shutters the manual override is only intended in down direction. HOLDING TORQUE The drive unit, is capable of holding the weight of the door without slippage.
